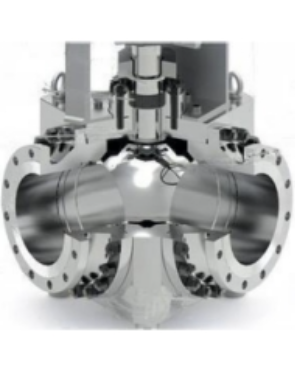

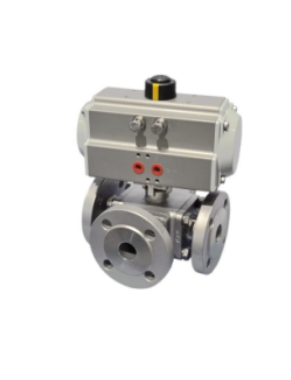

Three-Way Ball Valve

Short Description

Standards

French Size: ANSI B16.5
Driving flange: ISO 5211
Test standard: API 598
Design standard: API 608, API 6D

Material

Valve body: WCB, CF8, CF8M, etc
Ball body: Stainless Steel
Valve Seat: PTFE/R-PTFE , Metal Seat
Metal seal spraying: STL, WC, Ni60, Cr3C2

Technical Parameter

Nominal pressure: PN16-PN100(Class 150-Class600)
Nominal diameter: DN40-DN300
Connection mode: Flange, Welding,Thread
Operating temperature: -40℃-500℃
Actuator: worm gear, pneumatic, electric, hydraulic

Description
Reviews (0)

Adopt integrated structure, sealing type of 4-side seat, less flange connection, high reliability.
The design is lightweight and divided into T-type and L-type. Widely used in petroleum, chemical, pharmaceutical and other industries, mainly used in confluence, diversion, commutation and other conditions.
