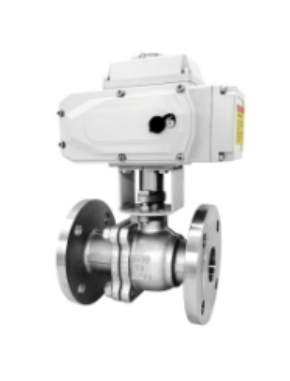

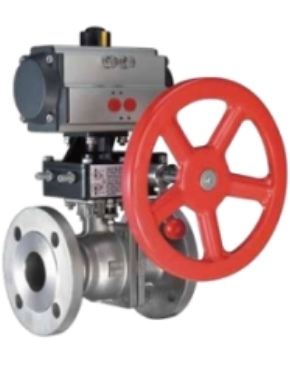

It can be equipped with manual, pneumatic, hydraulic and other driving mechanisms according to the working conditions, but also to achieve remote control is mainly used in petroleum, chemical, pharmaceutical and other working conditions, cutting off or connecting Water, oil, steam and other pipeline media
Short Description
Standards
- Flange size: ANSI B16.5, GB/T9113, HG/T20592/20615
- Driving flange: ISO 5211
- Test standard: API 598
- Design standard: API 608, BS5351, ISO 17292, API 6D
Material
- Valve body: WCB, CF8, CF8M
- Ball body: A105, 304, 316
- Valve seat: PTFE, RPTFE, PPL, PEEK , MetalSeat
- Valve shaft: 20Cr13, 304, 316
Technical Parameter
- Pressure range: PN16-PN100 (Classi50-Class600)
- Nominal diameter: DN15-DN200
- Connection: flange, thread, clamp, welding, clamp
- Temperature range: -40°C-450°C
- Actuator: handle, worm gear, pneumatic, electric, hydraulic
