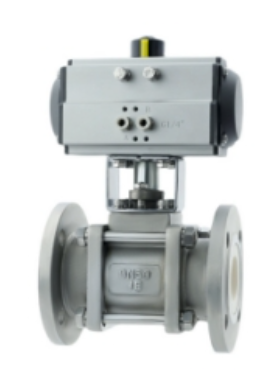

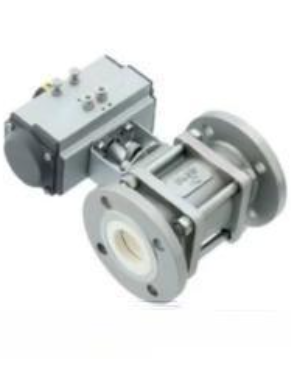

Ceramic Ball Valve

Short Description

Standards

  • Connection flange: IS07005-1:1992, ANSI B16.5, DIN, JIS, BS

  • Driving flange: ISO 5211

  • Test standard: API 598

  • Design standard: API 608

Material

  • Valve body: WCB

  • Flange: engineering ceramics

  • Ball body: engineering ceramics

  • Valve stem: 316L

  • Valve seat: Ceramic

Technical Parameter

  • Pressure range: PN16-PN40 (Classi150-Class300)

  • Valve size: DN15-DN200

  • Connection mode: Flange type

  • Temperature range: -20°C-500°C

  • Actuator: handle, worm gear, pneumatic, electric, hydraulic

The ball adopts grinding equipment and technology, high roundness, and the seat after grinding, the use of Zr02 ceramic self-lubricity, can obtain better sealing.

It is suitable for conveying boiler steam, lime slurry, seawater containing particles, high hardness particles, soft particles and corrosive medium

Quality, powder, flue gas desulfurization, ash discharge, slag discharge, water treatment. Change the material according to the use, can be used for different temperatures.
