Introduction
Mining environments impose severe demands on fluid control equipment. Abrasive slurries, heavy particulate matter, and continuous operation accelerate valve wear and increase the risk of unplanned shutdowns. A large copper mining operation in the Chilean Andes experienced repeated failures of isolation valves within its tailings transport system and required a solution engineered specifically for high-abrasion service conditions.
1. Project Background

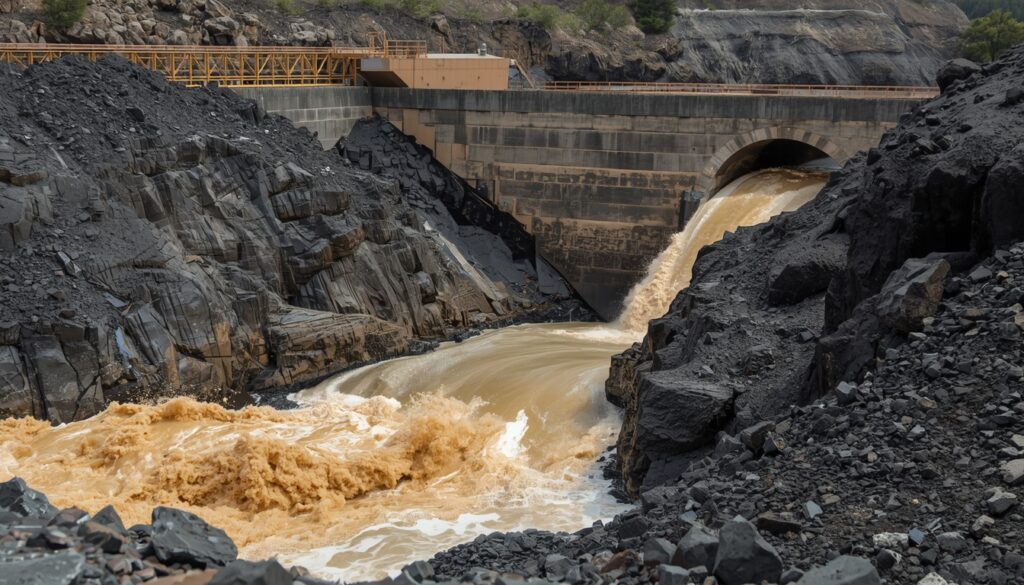

The client operates a major open-pit copper mine in South America. The affected valves were installed in the tailings disposal system, which transports waste slurry from the mineral processing plant to settling ponds.
The slurry consisted of finely ground rock particles mixed with water and residual processing chemicals. This high-density mixture flowed at elevated velocity and pressure, creating extreme mechanical wear within the pipeline network and valve internals.
2. Customer Challenge
The operation faced severe abrasion-related reliability issues. Standard rubber-lined butterfly valves and conventional knife gate valves were unable to withstand continuous exposure to high-velocity particulate flow.
Rapid Erosion
Solid particles progressively eroded elastomer linings and internal surfaces, causing valve bodies and sealing components to degrade within 3–6 months of service.
Frequent Downtime
Valve failures required shutdowns of the slurry transport lines for replacement, interrupting waste handling operations and creating bottlenecks in the mineral processing workflow.
High Maintenance Costs
The need for frequent replacements, combined with labor-intensive maintenance in a remote high-altitude location, significantly increased operating expenses.
3. Our Solution
A standard off-the-shelf valve configuration was unsuitable for this application. Our engineering team developed a customized valve design optimized for abrasion resistance and heavy slurry service.
Material Enhancement
Standard elastomer components were replaced with high-chrome iron and specialized abrasion-resistant steels for critical load-bearing and flow-contact surfaces.
Flow Path Optimization
The internal geometry was modified to minimize turbulence and reduce localized wear zones, improving overall durability under high-velocity slurry conditions.
4. Products Used
A series of heavy-duty customized Knife Gate Valves was engineered and supplied for the project.
Body Material
High-chrome iron (approximately 25% chromium content) provided superior hardness and resistance to abrasive wear.
Gate Design
Bi-directional sharpened gates manufactured from abrasion-resistant (AR) steel enabled effective cutting through settled solids.
Seat Configuration
Replaceable metal seats with wear-resistant surfaces and integrated flush ports prevented solid accumulation and ensured reliable closure.
Actuation System
Heavy-duty hydraulic actuators delivered sufficient thrust to close the valves against dense slurry columns and maintain sealing integrity.
5. Results and Benefits
The customized valve solution significantly improved the performance of the mine’s tailings transport system.
Extended Service Life
Average valve lifespan increased from approximately four months to over eighteen months, reducing replacement frequency.
Improved System Reliability
Reduced valve failure rates enabled near-continuous slurry transport and prevented process interruptions within the main processing facility.
Lower Total Cost of Ownership
Although the initial procurement cost exceeded that of standard valves, the reduction in maintenance labor, spare parts consumption, and production downtime resulted in an estimated 60% decrease in total operating costs.
Enhanced Operational Safety
Fewer maintenance interventions in high-pressure slurry pipelines reduced personnel exposure to hazardous working conditions and improved overall site safety.
Conclusion
This project demonstrates the importance of application-specific valve engineering in abrasive mining environments. By combining advanced materials, optimized flow geometry, and heavy-duty actuation systems, customized valve solutions can substantially improve equipment reliability, reduce maintenance frequency, and control lifecycle costs in demanding slurry transport operations.
